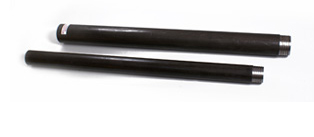

Wire Line rods
- Wire line drill rods are made from cold drawn alloy steel with high bend and wear resistance. The ends pin – box threads are conical.
- The alloy steel tube has the following mechanical characteristics:
Tensile strength: 950 MPA min.
Yield strength: 850 MPA min
 Wire Line Rods |
| Description |
O.D. mm |
I.D. mm |
Weight KG. |
| NWL Rod 1,5 m. |
70,00 |
60,30 |
11,50 |
| NWL Rod 3,0 m. |
70,00 |
60,30 |
23,50 |
| HWL Rod 1,5 m. |
88,90 |
78,00 |
17,50 |
| HWL Rod 3,0 m. |
88,90 |
78,00 |
34,50 |
| PWL/HWT Rod 1,5 m. |
114,3 |
101,6 |
27,50 |
| PWL/HWT Rod 3,0 m. |
114,3 |
101,6 |
54,50 |
Other diameters under request.
