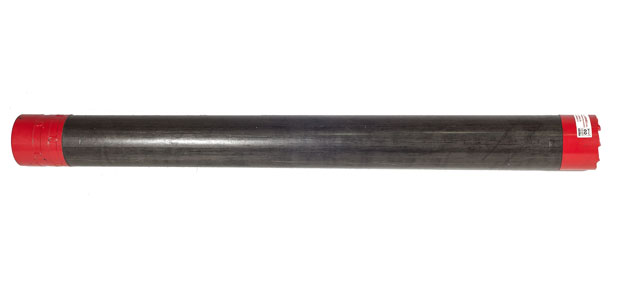

Double tube core barrel T6S Type.
- Core barrels double tube with aluminium split inner tube for drilling in very soft and loose formations.
- The split tube combined with face discharge bit, gives an undisturbed sample.
- It permits examination of the core and the transfer to core box without disturbance.
- They are suitable drilling with mud fluid and air flushing.
- All standard drilling diameters are supplied from 86 mm to 131 mm
- Core barrel type: 86 T6S 101 T6S 116 T6S 131 T6S
|
Double tube core barrel T6S Type - (Please move your mouse over the picture for details) |
| DOUBLE TUBE CORE BARREL T6S TYPE |
| Description |

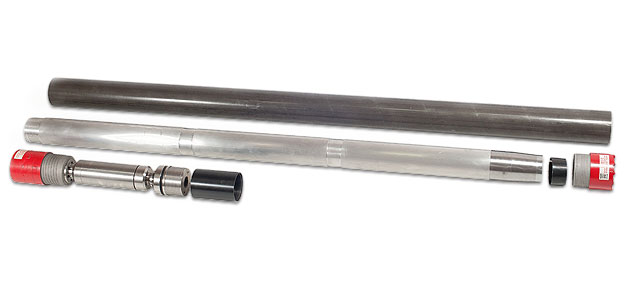

Components |
| Core barrel complete, 1,5 m without bit |
Outer tube 1,5m |
| |
Aluminium split inner tube 1,5m |
| |
Corel lifter case |
| |
Core lifter |
| |
Head complete, rod connection 50 mm* |
| |
Coupling split inner tube |
* Other connections in stock
Split inner tube
- Inner tube made in aluminum material and high precision machined
- The aluminum split tube in two pieces give an undisturbed sample
